Single-row Wood Multi-boring Machine BM21

BM21 multi boring machine is ideal for boring operations on panel with 21 spindles.

GET A FREE QUOTE

Error: Contact form not found.

Got any questions?

If you have something on your mind, just let us know!
We are more than happy to answer all your inquiries.

Interested? Leave your contact details.

☎ +86 18126609262

✉ manager@working-machinery.com

Parameter

MODEL	BM21 boring machine
Motor	1.5KW
Voltage	230V/50HZ/1PH;
380V/50HZ/3PH	90mm
Overall size	LXW=890*625mm
Drilling Depth	50mm
Rotation speed	2840rpm
Drilling Diameter	d=32mm, 21pcs
Packing size	106010501100mm
Weight	360/380kgs

Advantage

1.The power is equipped with a high-speed motor to improve the working efficiency and further improve the quality of the punching.

2.The drilling head has high precision, small amplitude and long service life.

3.The high-speed speed boring tool can adjust the drilling rate for different hardness plates, so that the equipment runs stably and the working efficiency is improved.

4. Pneumatical foot pedal activate both clamping and drilling 0.6MPa of compressed air required
Foldable guide bar for rip fence

Feature

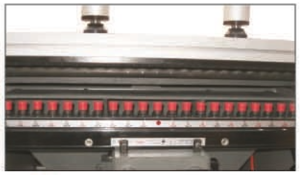

Boring unit –pneumatical–tiltable 90°

Boring unit–pneumatical–tiltable 0°

Quick-change chucks

Boring unit –pneumatical–tiltable 45°
