Parameter
| Specification and Model | FSM230 | |
|---|---|---|
| Working width (cutter OD110mm) | 20-230 | |
| Working thickness (cutter OD110mm) | 8-160 | |
| Spindle QTY | 5 | |
| Spindle rotation speed (r/min) | 1st bottom spindle | 6000 |
| Right spindle | 6000 | |
| Left spindle | 6000 | |
| Top spindle | 6000 | |
| 2nd bottom spindle | 6000 | |
| Cutting circle (mm) | 1st bottom spindle | Ø110 ~ Ø145 |
| Right spindle | Ø110 ~ Ø200 | |
| Left spindle | Ø110 ~ Ø200 | |
| Top spindle | Ø110 ~ Ø200 | |
| 2nd bottom spindle | Ø110 ~ Ø200 | |
| Dia of shaft (mm) | Ø40 | |
| Motor power( KW ) | 1st bottom spindle | 5.5 kW/7.5HP |
| Right spindle | 5.5 kW/7.5HP | |
| Left spindle | 7.5 kW/10HP | |
| Top spindle | 7.5 kW/10HP | |
| 2nd bottom spindle | 7.5 kW/10HP | |
| Feeding | 3kW/4HP | |
| Feeding beam lift | 0.75kW/1HP | |
| Total motor power(KW) | 37.25kW/50HP | |
| Feeding speed (m/min) (Inverter to feed) | 6~30 | |
| Top pressure roller dia, OD/ID (mm) | Ø140/ Ø35 | |
| Dust suction pipe Dia. (mm) | Ø150 | |
| Dimension L * W * H (mm) | 3980×1720×1730mm | |
| Weight N.W.(Ton) | About 3.6 |
Features
1. 4 sided planer and moulder with inverter feed speed of 6~30m/min（Optional feed speed 9-45m/min.
2. Individual motor to each spindle to ensure maximum power transmission.
3. High precision spindle units with two pairs of high precision bearings each end of the assembly.
4. All main spindle adjustments are carried out from outside the enclosure.
5. Electroplating worktable ,good wear resistance.
6. Short piece driven top feed roller unit for greater feeding control around the right side spindle.
7. A group of side pressure wheels on the right side of the left spindle, adjusted the pressure flexible by pneumatic.
8. As our standard, short pieces device with pneumatic double-direction( press and raise) , you can make the workpieces feeding or back in anytime.
9. in-feed bottom helical roller is more suitable for large deformation and high moisture of the wood to feed.
10. Multi-group bottom driving roller to improve the feed effect.
11. Pneumatic pressure loaded to top feed rollers separately adjustable, for easy of feeding stock with variation in thickness.
12. Adjustable out-feed side pressure plate can meet the different thickness of material output steadily.
13. Manual bed lubrication to reduce friction and improve feeding difficult timbers.
14. Adopting electric component from international class with steady quality.
15. Sealed safety enclose to reduce noise levels, improve extraction and operator safety.

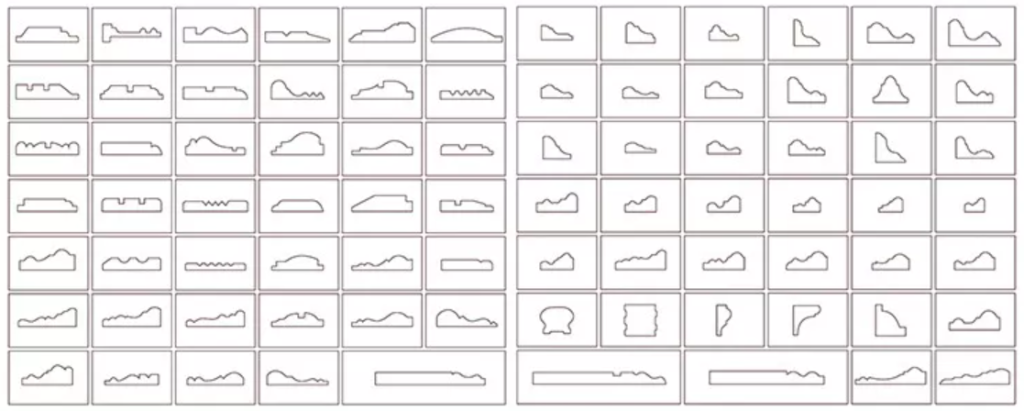

Wood Sample Diagram
