Details

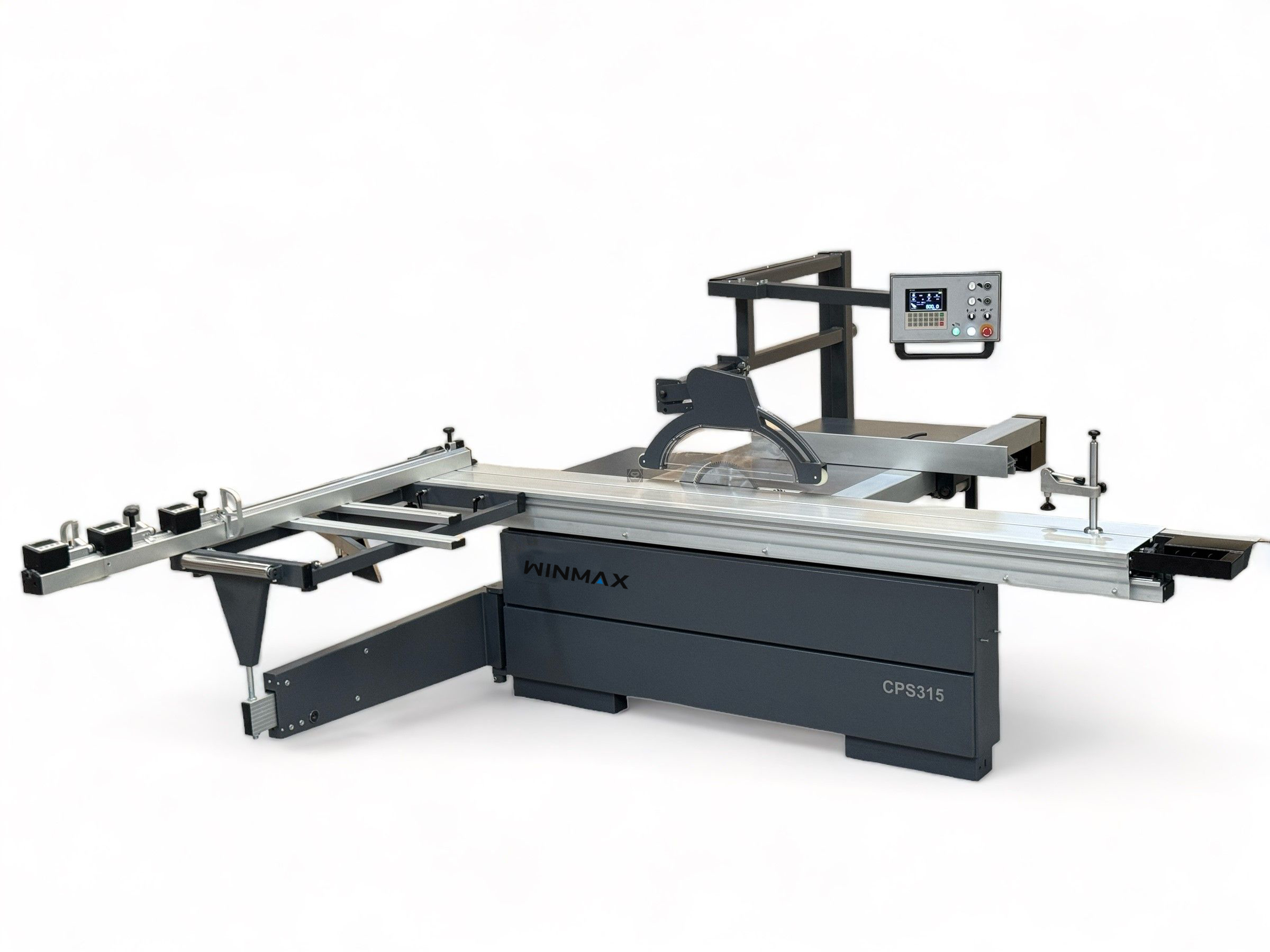

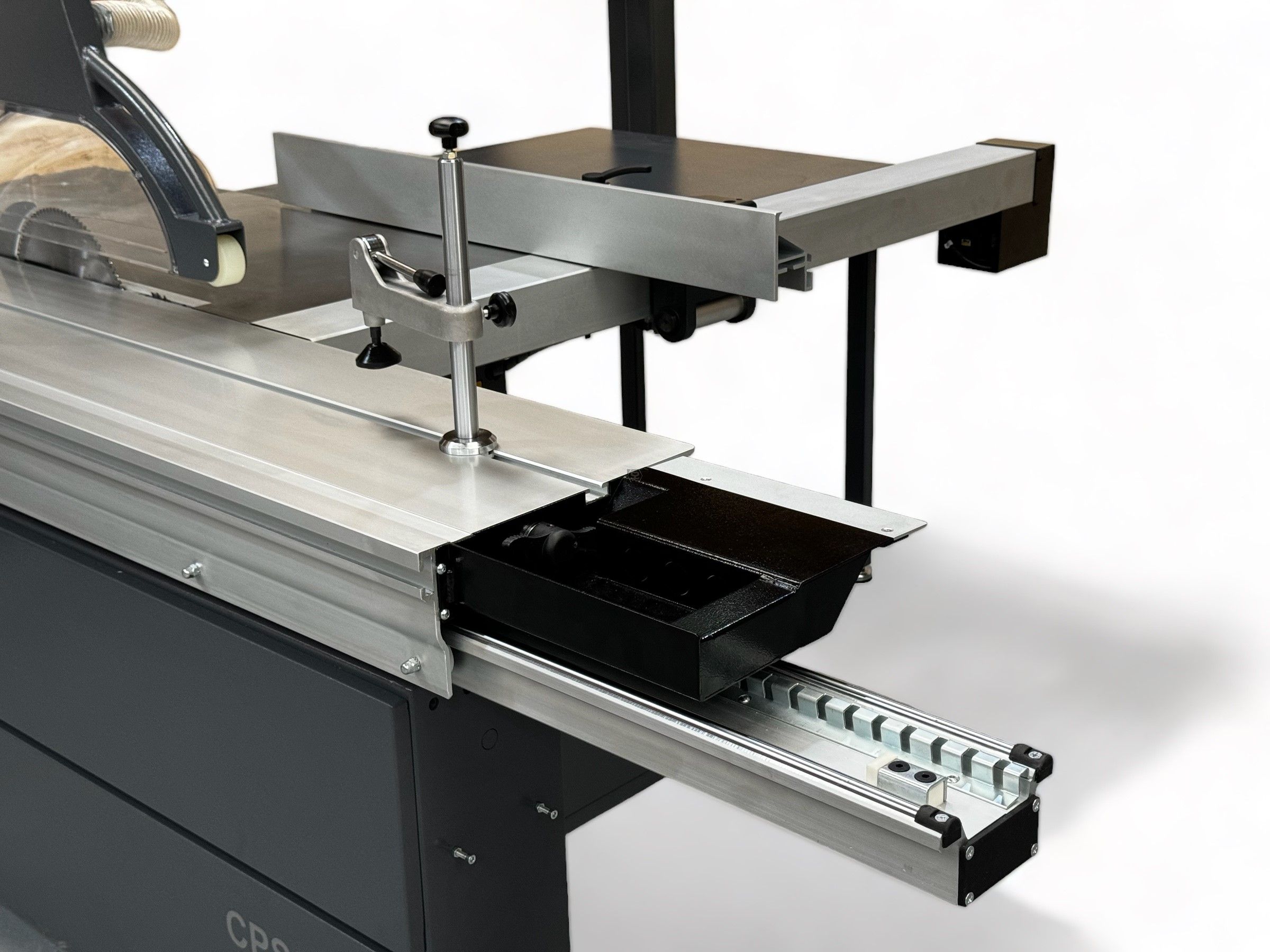

This CPS315 smart eletric Panel saw uses top quality components from Schnieder, Siemens, Tsun, electro drive servo lead screw driven rip fence, controls to the rip fence. Large high qaulity backlit digital turnover stops [x3]. A high qaulity 3.2m by 375mm aluminium sliding table running on two round bars for smooth running and enhanced accuracy.
For further information please check the video in the ‘product videos’ tab below.
Features:
315mm main saw blade
Dial-a-Size rip fence position with fast, accurate servo ball screw movement
Powered Tilt with Electronic Display on screen
Powered Height with Electronic Display
Cross Cut Fence with 2 x Elgo Digital Stops
Wide sliding Table [312mm] with easylift off frame
Remote On/Off on Sliding Table
Options included as standard:
WinMax SMART Electronic Panel Saw
(CPS315) with Overhead Saw Guard(thin/fat guard included)
with Motorized rise/fall and tilting
with Auto rip fence
with Digital stops set to 1 decimal place 0.1
X Fence with micro adjustment (+490) 4KW/400V/50HZ/3PH + 0.75KW
Parameter
| Panel saw | CPS315 |
|---|---|
| Main Saw Blade size | 315mm |
| Scoring saw blade size | 120mm |
| Maximum width saw to fence | 1250 mm |
| Table size | 800 mm |
| Scoring saw motor power | 0.75kW S1 |
| Max depth of cut at 90° | 95mm |
| Max rip capacity | 1250 |
| Scoring saw blade speed | 8000rpm |
| Sliding table size | 3200mm x 320 mm |
| Main extend table size | 910x760 |
| Diameter of the exhaust | 120mm & 80mm |
| Main saw blade speed | 4500 rpm |
| Main motor output | 4kW [5hp] S1 Rated |
| Maximum cutting stroke | 3200 mm |
| Net/Gross weight | 750 / 840kgs |
| Diameter of the exhaust | 120mm & 80mm |
